All Frames are the common standard NZ sizing

Assembled and wired and ready for you to add the wax foundation.

Made from High Density Russian Pine, they are very strong and will last for many years.

The top bar is secured with four 32mm staples at the top and a 20mm staple on each end. The bottom bars have a machined groove to locate the foundation and are secured with 32mm staples.

A registration number can be hot branded onto the top bar with 20mm lettering on indent orders in pallet quantities. 640 frames on a pallet.

See below for details.

Frame Size:

1/2 Depth - Your Russian Pine frame will be 125mm high, assembled and wired with brass eyelets on the end bars. 1/2 depth is often used as a honey super for comb honey or just because it's the lightest size when filled with honey.

3/4 Depth - Your Russian Pine frame will be 176mm high, assembled and wired with brass eyelets on the end bars. 3/4 depth is the most common size for honey supers as it is still a relatively manageable weight but allows for a good harvest per box. Some beekeepers find two 3/4 boxes a good size for a brood chamber.

WSP Depth - Your Russian Pine frame will be 183mm high, assembled and wired with brass eyelets on the end bars. WSP depth is used like the 3/4 size frame but in our Technoset 3/4 boxes, as they are slightly higher than the standard 3/4 box and fit these frames.

Full Depth - Your Russian Pine frame will be 231mm high, assembled and wired with brass eyelets on the end bars. Full Depth is the most common size in beekeeping with it being used for brood chambers and honey supers. Beekeepers often will use two of these for the brood chamber.

Jumbo Depth - Your Russian Pine frame will be 286mm high, assembled and wired with brass eyelets on the end bars. Jumbo depth is usually used as an option of having just one brood super. This size is the closest arrangement you can have to the bees natural hive size in the wild.

Frame Endbar Size:

33mm - Your Russian Pine frames will be assembled and have an endbar size of 33mm. 33mm Gives you plenty of space in the brood box with 10 frames giving you more flexibility on how you place your frames and also allowing for the wax and propolis build up on the frames. This is often used in brood chambers as they get clogged up the most.

35mm - Your Russian Pine frames will be assembled and have an endbar size of 35mm. 35mm means that 10 frames will fit in a standard super with a near perfect fit. This will give thicker built out frames and also consistent spacing between the frames. This is often used in honey supers to get the thicker frames and more yield.

43mm - Your Russian Pine frames will be assembled and have an endbar size of 43mm. 43mm means that 8 frames will fit in a standard super. This will give thick built out frames and is often used in honey supers to get the thicker frames and more yield. Only available on 3/4 & WSP frames.

Crafted from premium 304 grade stainless steel, our queen isolation cage sets the new standard for durability and corrosion resistance in beekeeping equipment.

Fits one full depth frame with either 33mm or 35mm end bars.

Applications:

1. Queen Breeding: Perfect for queen breeders to ensure optimal larvae age for grafting, facilitating superior queen production.
2. Winter use in warmer climates: Ideal for limiting brood production during winter months, effectively reducing varroa mite reproduction. Reduces the colonies food requirements due to less brood.
3. Swarm control in Spring: The speed of colony growth can be controlled with the use of the cage at specific times to enable the colony to reach peak hive numbers at the start of the honey flow without swarming first.
4. Varroa Control: See the procedure below:-

A. Introduce a clean empty brood frame to the cage.
B. Find the queen and enclose in the cage.
C. Position the cage into the middle of the brood nest.
D. A good queen will lay in virtually every cell within 2 days.
E. After 26-28 days, there will be virtually no capped brood and all mites will be exposed to treatment. Can be 23 – 25 days if there is no drone brood.
F. Vaporize with Oxalic Acid for virtually complete mite elimination.
G. Whenever desired, the frame of brood with queen can be removed from cage and added back to brood nest.
H. The cage can be removed from the hive or left at the side of the brood box with a food frame enclosed until needed.

Specifications.

• 40mm inside width, 48mm outside width.
• 459mm long x 242mm high.
• The top cap is 484mm long.
• The air gap in the mesh is 4.3mm. Bees can take pollen through successfully.
• Has a clip-on cap which is held firmly down when the next box or hive mat is added above it.

Internal hive dimensions must be the Langstroth standard to ensure the cage fits properly and there are no gaps for the queen to escape.

Many beekeepers ensure their queens are marked so they are easy to find for caging when required. The labour cost for this procedure is negligible when compared to the cost of resurrecting colonies killed by varroa mites!

Three-frame cage available here.

As we see more and more varroa resistance to the synthetic miticide strips, beekeepers are turning to organic acids for successful varroa control. There is no evidence worldwide of the mites getting resistant to them. The stainless steel cages are very resilient in an acid environment and will not oxidise and deteriorate like galvanised steel products.

It pays to get quality!

Discover the Beequip 4-Way Nuc – 4 hives in one box, perfect for queen rearing, overwintering, and colony expansion. Includes feeders, divider boards, insulated mats, and mouse-proof entrances. Fits standard hive dimensions.

Features:

- 4 hives each with five 3/4 depth frames & wax coated plastic foundation.

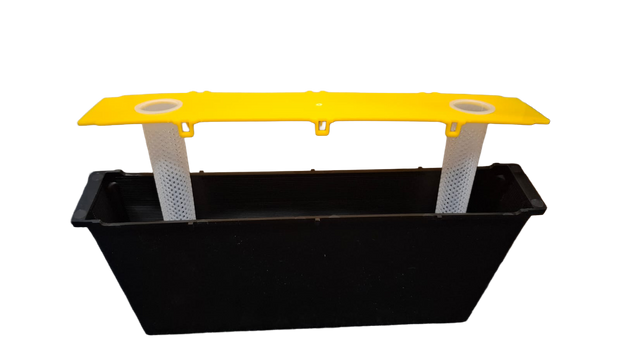

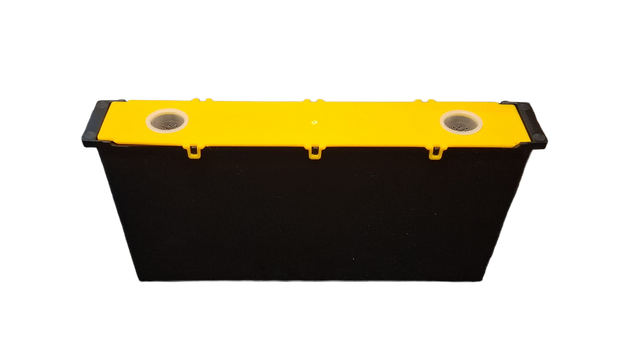

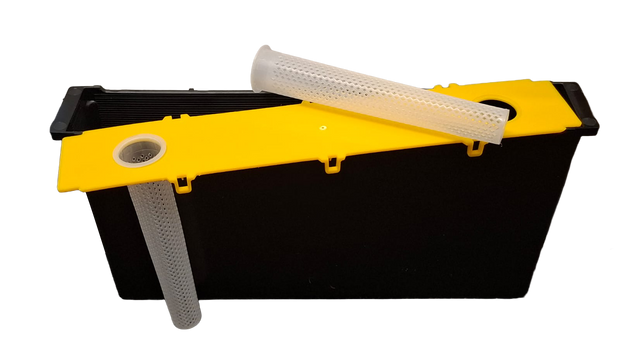

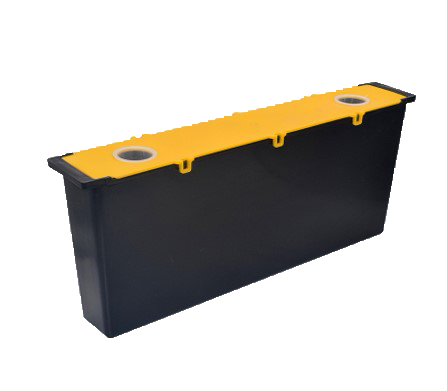

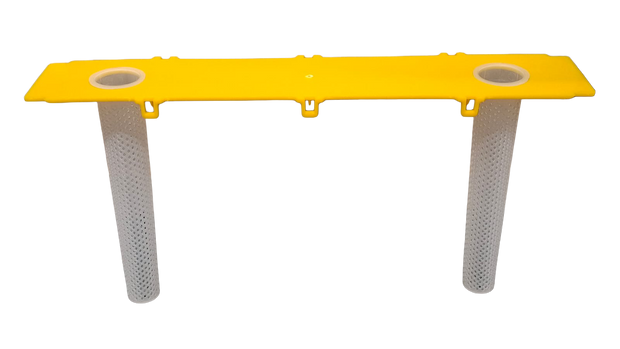

- 4 Tank Feeders (one litre each)  with ladders.
- 2 removable divider boards. Can run the hive over winter with 2 colonies only.
- 4 separate Hive Mats with high insulation properties.
- 4 closeable & mouse proof entries with landing board. Range of colour options.
- Space for pollen supplements and has 4 floor vents.
- Box can be fitted to a standard hive to draw out the frames.

View VIDEO here.

How to start of the 4 Way Nuc

The outside dimensions of the box are standard so you can put the whole box on top of a standard beehive to draw out the frames.
If the divider slides and the feeders are removed, you can fit 13 frames each side.
If you put that on a busy hive and add a top feeder full of syrup, you will get the frames drawn in a very short time.

If you let the queen lay in the frames, then you soon have a great box of bees with brood and stores that is easy to shift  back to its standard base etc.
Add dividers and feeders, add 4 queen cells and weather permitting, you will have 4 great laying queens within 3 to 4 weeks.

If the frames are already drawn, you can start the colony by adding a litre of bees to each of the 4 sections.
If the bees are from several hives, spray them gently with vanilla essence, diluted with water. 1 part essence to 2 parts water.
That masks any scent and stops fighting.
Fill the feeders with syrup. Is good to add some pollen supplement as well.
Locate the hives in new positions with the entries closed.
Add a queen cell to each section that is ready to hatch within 24 hours.
After 48 hours, open entrances and let the bees take their bearings on the new location.
Refill feeders with syrup.
Monitor regularly that they have enough feed.

If the frames are not drawn, the above procedure could be adopted if it was during a reasonable honey flow and the weather allows the bees to get out and collect their food requirements.

Hive mat specially made to suit the 2in1 Hive setup.

Designed to fit perfectly under the 2in1 Lid.

Find out more about the 2in1 Hive here.

21mm Rim and Oil Tempered hardboard.
507 x 202 x 21mm
